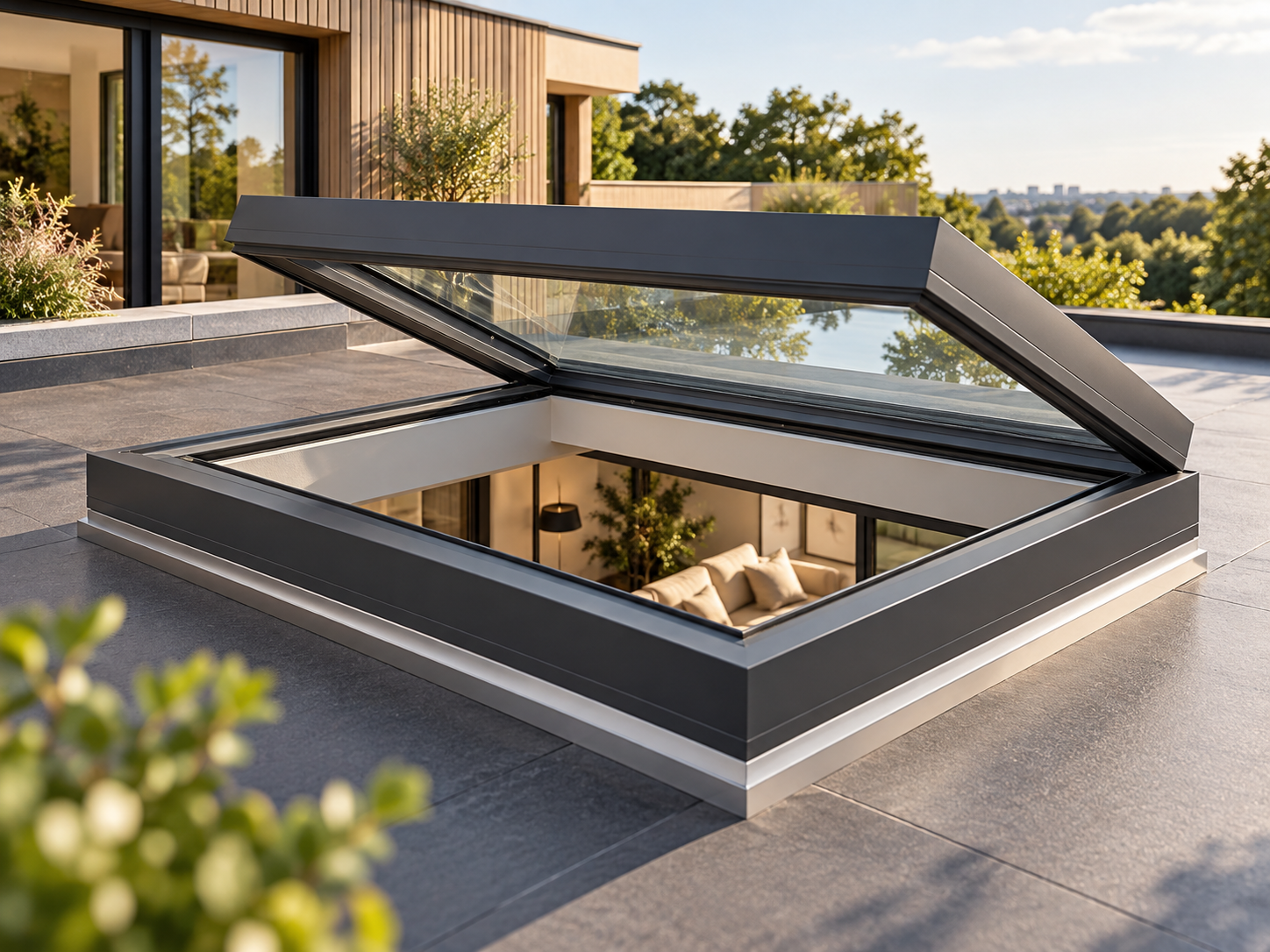

Atlas Electric Opening Flat Rooflight

Sizes for the electric opening flat rooflight are based on the internal kerb dimensions, excluding plasterboard.

The pitched side is measured on the slope. In the size selector, dimensions are shown as slope side x hinge side.

Please check the finished kerb carefully before ordering. If you are unsure which size to select, contact Lumina Design before placing the order.

Standard glass specification: 6mm clear toughened / 16mm argon gas cavity / 6mm low-e toughened.

Solar-control glass specification: 6mm easy-clean solar Neutral or Blue Activ toughened / 16mm argon gas cavity / 6mm low-e toughened.

Neutral and Blue solar-control glass are the same price for a given size.

The opening system uses a 24V DC chain actuator designed for comfort ventilation.

The actuator supports programmable opening strokes of 400, 600, 800 or 1000mm, with a programmable opening speed and soft-close function.

The actuator is rated for 10,000 opening and closing movements.

The ventilation controller can operate the window actuator from a comfort keypad and can also accept inputs from room sensors and weather sensors.

Rain/wind sensing, temperature control and timed or automated control can be incorporated into a suitable system.

Contact Lumina Design if you would like help specifying the control package for your project.

Stock frame finishes: White Gloss, Anthracite Grey RAL 7016 Matt, Black RAL 9005 Matt, Anthracite Grey RAL 7016 Matt / White Internal, and Black RAL 9005 Matt / White Internal.

Prices include VAT. The supplied pricing matrix includes weekly delivery on an Atlas lorry run; additional delivery charges may apply in certain locations.

If your project is time-sensitive, please contact Lumina Design before ordering.
